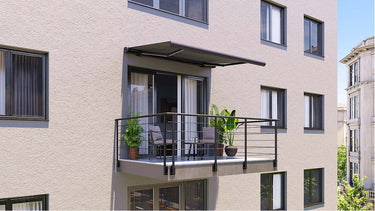

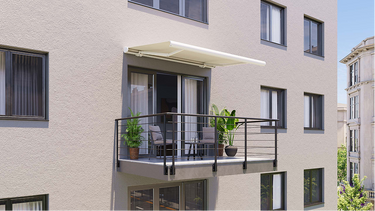

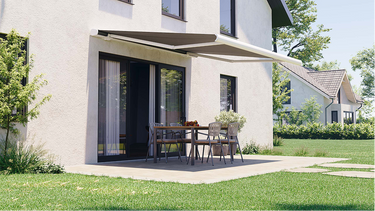

FabricGrey / Beige -
CassetteAnthracite / White -
9 sizes2-6 m -
OptionalWind sensor
Launch Offer 25% OFF
Only until Mon Aug 10. Valid for the first 100 orders. Don't miss out!
| Design | |
|---|---|
| Housing construction | Fully enclosed cassette |

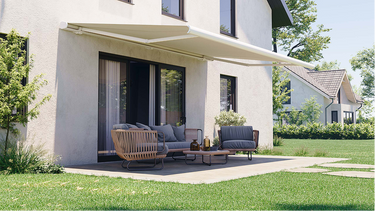

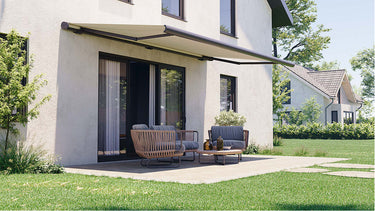

| Frame colour options | Anthracite / White |

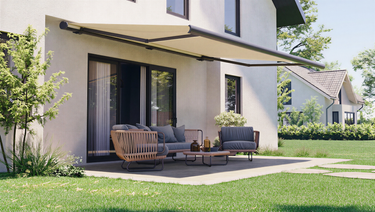

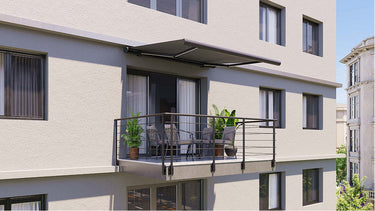

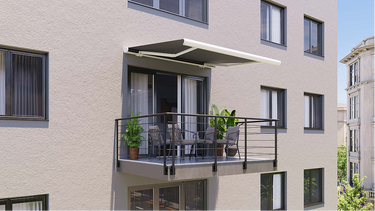

| Mounting options | Wall or ceiling |
| Approved mounting surfaces |
STANDARD: Concrete • Timber frame/stud • Render over timber • Timber rafters • Steel • Solid brick/clinker/cavity masonry • Sand-lime brick • Hollow block/Poroton • ETICS/EIFS SPECIAL CARE REQUIRED: Brick veneer on timber • AAC/Ytong • Hollow-core concrete • Natural stone |
| Operation | Remote control, hand crank in event of power outage |
| Dimensions | |
|---|---|
| Total product weight | 30 kg to 88 kg (incl. brackets) |
| Cassette width options | 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 5 m, 6 m |
| Cassette height (closed) | 150 mm |
| Cassette depth (closed) | 222 mm |
| Recommended mounting height | 2.5 to 3.5 metres |
| Minimum installation height | 20 cm above door or window |
| Projection length | 1.5 m, 2 m, 2.5 m and 3.0 m |
| Awning extension angle | 5° to 25°, adjustable |
| Materials | |
|---|---|
| Cassette | High-quality aluminium profile 6063-T5 |
| Arm cables | Stainless steel 304 (plastic-coated) |
| Brackets, hinges | Hot-dip galvanised Q235 carbon steel |
| Fabric material | 280 g/m² AuroWeave™ PU-coated polyester |
| Fade resistance | Level 4 |
| Rust resistant | Yes |
| Fabric | |
|---|---|
| UV protection | UPF 50+ (blocks over 98% of harmful UV rays) |
| UV test duration | 1000-hour Xenon Arc test |
| Fabric warranty | 5 years (AuroWeave™) |
| Performance | |
|---|---|
| Lifespan | 20 years of standard use |
| Speed | 60 seconds full open/close cycle |
| Wind resistance | Class 2 (29-38 km/h) |
| Rain resistance | EN 20811 |
| Weather sensing | Optional wind sensor for automatic retraction |
| Lighting | |
|---|---|
| Integrated | LED strip (DC24V COB, 320 D/m) |
| Dimmable | Yes |
| Max lumens | ~430 lumens/m |
| Colour temperature | 3000K - warm white |
| Operation | Remote control included |
| Electrical | |
|---|---|
| Weather rating | IPX4 |
| Power requirement | 230V / 50Hz |
| Plug type | Type I (AS/NZS 3112) |
| Cable exit point | Left (facing house wall) |
| Cable length | 7.5 m |
| Delivery | |
|---|---|
| Shipping | Free shipping on all orders |
| Number of packages | 2 (1x awning pre-assembled, 1x mounting bracket set) |
| Product weight | 2.0–4.0 m: 30–67 kg (2 people) 5.0–6.0 m: 72–88 kg (3 people) Bracket carton: +5–12 kg |
| Installation | |
|---|---|
| Difficulty | Beginner-friendly |
| Installation time | 1 hour |
| Recommended crew size | 2-3 |
| Tools/hardware included | Wall or ceiling brackets are included. Fixings and spacers are not included. |
| Tools required | Drill, drill bit suited to the wall type, spanner (19 mm for M12, 17 mm for M10), 6 mm and 5 mm hex/Allen keys, spirit level, 2 ladders, tape measure. Max fastener size: M12, minimum: M10 (washer required). |
| Professional installation | Optional |
| Surface restrictions | Plasterboard/drywall (wall or ceiling): do not mount directly. No load-bearing capacity. If drywall is present, locate the structural stud or joist behind it and fix into that. |
| Warranty | |
|---|---|
| Warranty term | Component-based / 10-year cassette |
| Warranty coverage | Aluminium cassette - 10 years Motor - 5 years Arms/mechanism - 5 years Fabric (AuroWeave™) - 5 years Electronics - 2 years |
Up to 10°C cooler on your patio, deck or balcony during hot summer days. Integrated LED lighting extends the enjoyment of your outdoor space well into the evening.
The motorised full-cassette awning fully protects the fabric and operating components when retracted, shielding them from rain, dirt and UV exposure. In operation, it extends and retracts smoothly and quietly, without squeaking or friction.
The 280 g/m² PU-coated AuroWeave™ polyester fabric (UPF 50+) blocks 98% of harmful UV rays while still allowing soft, natural daylight to filter through. The screw-free Scandinavian design creates a clean, seamless look that complements any home exterior.
Constructed from 6063-T5 aluminium and 304 stainless steel cables, and tested through over 3,000 extension and retraction cycles in laboratory conditions, delivering an expected lifespan of up to 20 years. Rated Wind Resistance Class 2 (EN 13561) and IPX4 weather resistant for reliable outdoor performance.
20+ years of engineering experience, direct-to-consumer pricing, and zero compromises. That's the PERGOLUX standard — now in our awning too.
Exceptional value for money is part of our DNA. By designing smarter, manufacturing at scale, and selling directly to homeowners, we deliver premium outdoor products with exceptional quality and value.
Thoughtfully designed for easy DIY installation, so you can get set up with confidence.
Certified UPF 50+ protection blocks 98% of UV rays
Built-in LED lighting for longer evenings outside
Mold resistant: breathable, water-repellent coating & full cassette design
Fully enclosed cassette: weatherproof and sleek
Whisper-quiet motor with smooth operation.
More shade with an adjustable tilt angle of 5°–25°
Optional Wind Sensor with Auto-Retract

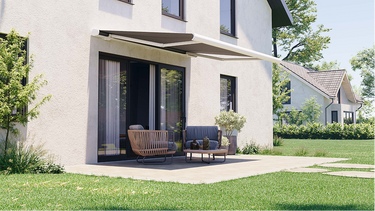

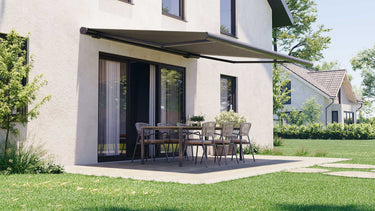

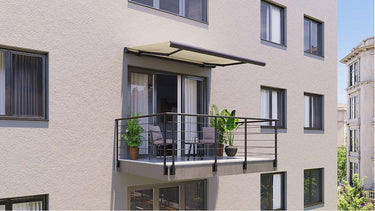

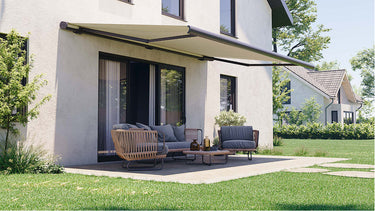

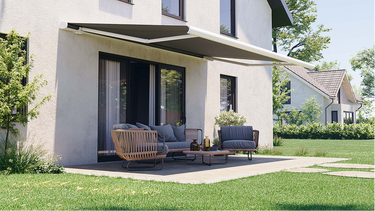

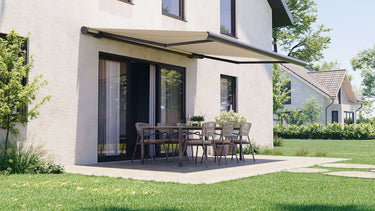

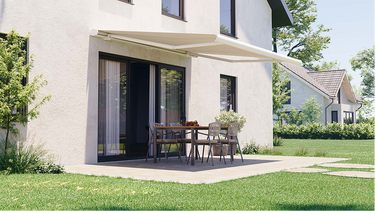

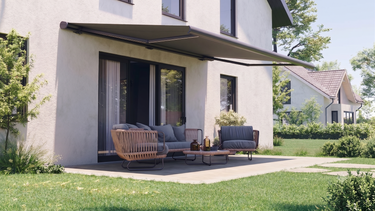

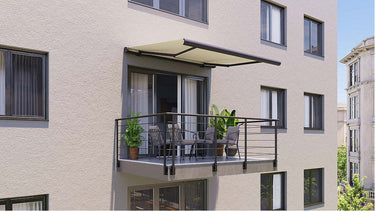

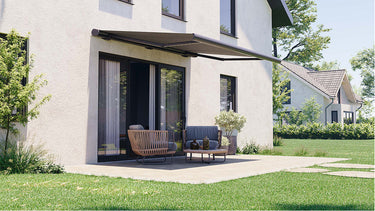

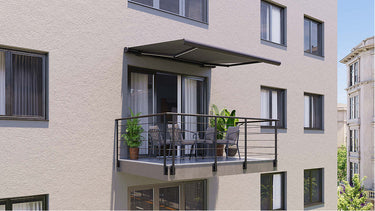

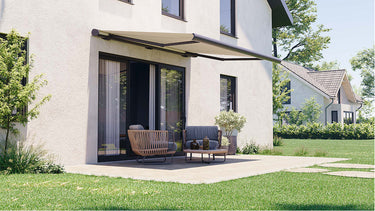

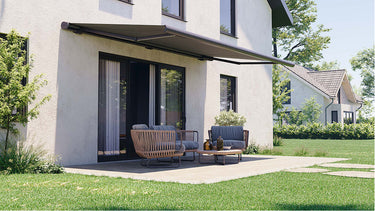

Premium Motorised Retractable Awning for Patios, Decks & Balconies
The PERGOLUX Awning is a premium full-cassette motorised awning designed for Australian homes. Combining Scandinavian design, premium materials and exceptional value, it's built to provide reliable shade and comfort for years to come.
- Lab-tested for more than 3,000 opening and closing cycles – equivalent to around 20 years of regular use
- Integrated dimmable LED lighting
- Remote-controlled operation with adjustable pitch angle
- Smooth, whisper-quiet motor
More than 100,000 homeowners worldwide have transformed their outdoor spaces with PERGOLUX.

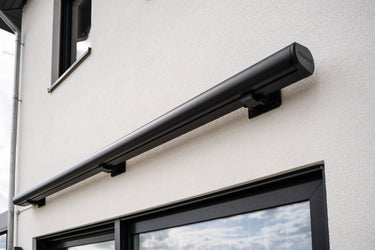

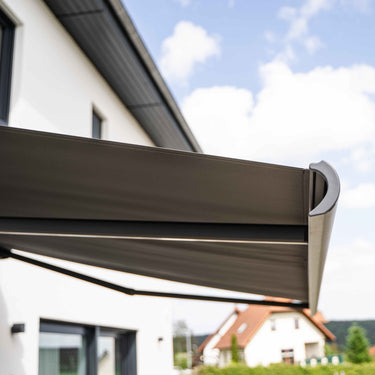

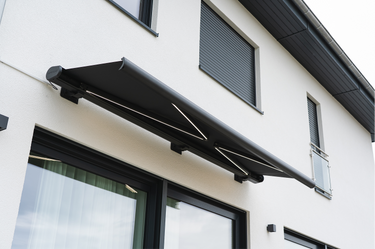

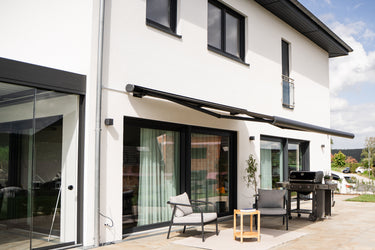

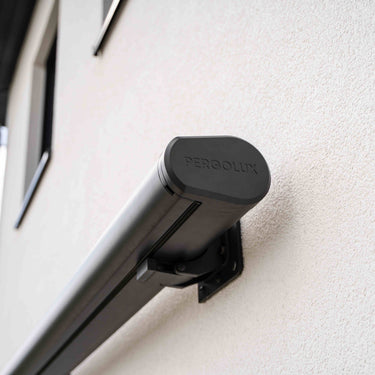

Built for Australian Conditions with a Premium Full-Cassette Design

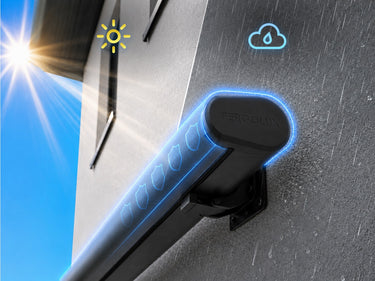

When retracted, the full-cassette housing completely protects the fabric and folding arms from Australia's harsh sun, rain, dirt and everyday exposure. The durable cassette is manufactured from premium 6063-T5 powder-coated aluminium for long-lasting performance.
- Fully enclosed cassette protects the fabric and moving parts
- Helps prevent UV exposure, dirt and moisture damage
- High-strength 6063-T5 aluminium construction
- Rust- and corrosion-resistant
- Premium Akzo Nobel® powder-coated finish for lasting durability
Simply rinse it with a garden hose to keep your awning looking its best.
UPF 50+ Fabric That Helps Keep Your Outdoor Area Cooler
Made from premium 280g/m² PERGOLUX AuroWeave™ polyester with a durable PU coating, the fabric is engineered for Australia's climate. It delivers excellent UV protection while allowing natural daylight to filter through.
- Helps reduce the temperature underneath by up to 10°C

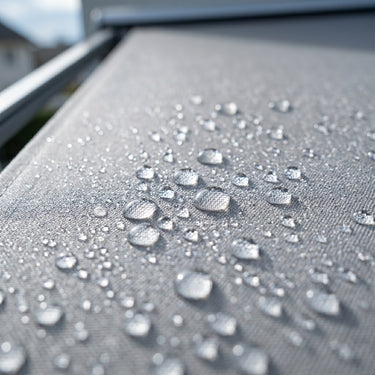

- Water-repellent during light rain
- UPF 50+ rated – blocks up to 98% of harmful UV rays
- Resistant to mould, fading and everyday weathering

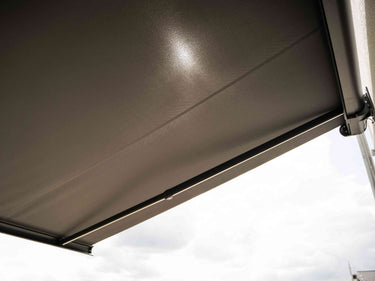

- Taut fabric helps minimise water pooling
- Easy to clean with a quick hose down
- Premium woven finish with a modern canvas appearance
Tested under extreme UV exposure to ensure long-lasting colour and performance.

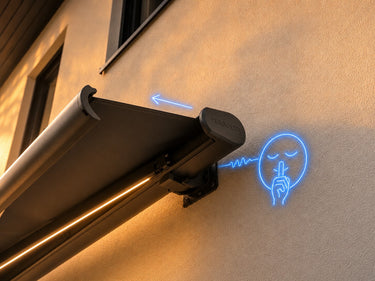

Powerful, Whisper-Quiet Motor with Premium Stainless Steel Components
Open or close your awning at the touch of a button. Premium 304 stainless steel internal cables and a high-performance motor deliver smooth, reliable operation every time.
- Quiet, effortless operation
- Remote-controlled for everyday convenience
- Smooth, consistent opening and closing
- Tested for over 3,000 operating cycles
- Remote control range of up to 20 metres
- Low-maintenance design with no regular servicing required
- Optional wind sensor automatically retracts the awning during strong winds
Enjoy effortless shade without the noise.

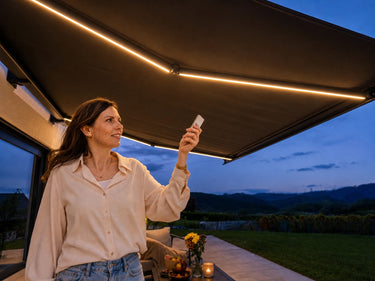

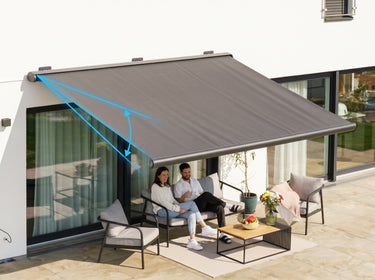

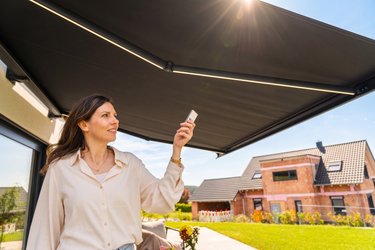

Adjustable Shade with Integrated Dimmable LED Lighting
Create the perfect outdoor setting from day to night. Easily adjust the awning's pitch to suit the position of the sun, while integrated LED lighting keeps your outdoor space bright long after sunset.
- Adjustable pitch angle from 5° to 25°
- Durable rust-resistant hinges
- Integrated LED lighting built into both arms
- Fully dimmable to suit any occasion
- No additional wiring required
Stay comfortable outdoors from sunny afternoons through to evening entertaining.

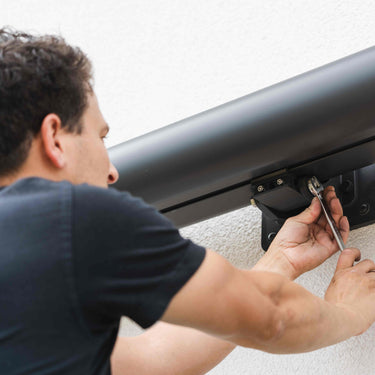

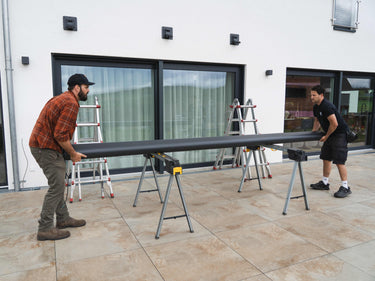

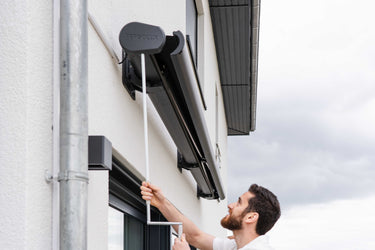

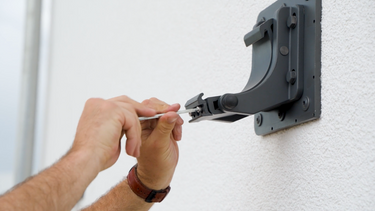

Designed for Easy Installation
The PERGOLUX Awning is designed for straightforward installation and can typically be installed by two people in around an hour. No electrician is required for a standard installation—simply mount it, plug it into a standard outdoor power point and you're ready to go.
If you need assistance, our Australian support team is available via phone, live chat and video call to help every step of the way.
Easy DIY Installation or Professional Installation Available
Designed for straightforward installation, the PERGOLUX Awning can typically be installed by two people in around an hour. No specialist experience or electrician is required—just mount it, plug it into a standard outdoor power point, and enjoy instant shade.
Prefer to leave it to the experts? We work with trusted installation partners across selected regions in Australia. Simply add professional installation to your order when purchasing your awning.
Download the installation guide (PDF).
Get an Installation Quote from a Trusted Local Partner
Prefer not to install it yourself? We can connect you with one of our trusted independent installation partners available through our website.
- Request an installation quote directly from the product page or configurator
- Experienced awning installers in selected regions across Australia
- Installation arranged directly with the local partner
- Convenient scheduling to suit your availability
- Your awning is tested and handed over ready to use
PERGOLUX does not provide installation services directly. Installation is quoted and completed by independent third-party partners, and availability may vary depending on your location. If you'd like a quote, simply select the installation quote option when configuring your awning online.
| Design | |
|---|---|
| Housing construction | Fully enclosed cassette |
| Frame colour options | Anthracite / White |
| Mounting options | Wall or ceiling |
| Approved mounting surfaces |
STANDARD: Concrete • Timber frame/stud • Render over timber • Timber rafters • Steel • Solid brick/clinker/cavity masonry • Sand-lime brick • Hollow block/Poroton • ETICS/EIFS SPECIAL CARE REQUIRED: Brick veneer on timber • AAC/Ytong • Hollow-core concrete • Natural stone |
| Operation | Remote control, hand crank in event of power outage |
| Dimensions | |
|---|---|
| Total product weight | 30 kg to 88 kg (incl. brackets) |
| Cassette width options | 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 5 m, 6 m |
| Cassette height (closed) | 150 mm |
| Cassette depth (closed) | 222 mm |
| Recommended mounting height | 2.5 to 3.5 metres |
| Minimum installation height | 20 cm above door or window |
| Projection length | 1.5 m, 2 m, 2.5 m and 3.0 m |
| Awning extension angle | 5° to 25°, adjustable |
| Materials | |
|---|---|
| Cassette | High-quality aluminium profile 6063-T5 |
| Arm cables | Stainless steel 304 (plastic-coated) |
| Brackets, hinges | Hot-dip galvanised Q235 carbon steel |
| Fabric material | 280 g/m² AuroWeave™ PU-coated polyester |
| Fade resistance | Level 4 |
| Rust resistant | Yes |
| Fabric | |
|---|---|
| UV protection | UPF 50+ (blocks over 98% of harmful UV rays) |
| UV test duration | 1000-hour Xenon Arc test |
| Fabric warranty | 5 years (AuroWeave™) |
| Performance | |
|---|---|
| Lifespan | 20 years of standard use |
| Speed | 60 seconds full open/close cycle |
| Wind resistance | Class 2 (29-38 km/h) |
| Rain resistance | EN 20811 |
| Weather sensing | Optional wind sensor for automatic retraction |
| Lighting | |
|---|---|
| Integrated | LED strip (DC24V COB, 320 D/m) |
| Dimmable | Yes |
| Max lumens | ~430 lumens/m |
| Colour temperature | 3000K - warm white |
| Operation | Remote control included |
| Electrical | |
|---|---|
| Weather rating | IPX4 |
| Power requirement | 230V / 50Hz |
| Plug type | Type I (AS/NZS 3112) |
| Cable exit point | Left (facing house wall) |
| Cable length | 7.5 m |
| Delivery | |
|---|---|
| Shipping | Free shipping on all orders |
| Number of packages | 2 (1x awning pre-assembled, 1x mounting bracket set) |
| Product weight | 2.0–4.0 m: 30–67 kg (2 people) 5.0–6.0 m: 72–88 kg (3 people) Bracket carton: +5–12 kg |
| Installation | |
|---|---|
| Difficulty | Beginner-friendly |
| Installation time | 1 hour |
| Recommended crew size | 2-3 |
| Tools/hardware included | Wall or ceiling brackets are included. Fixings and spacers are not included. |
| Tools required | Drill, drill bit suited to the wall type, spanner (19 mm for M12, 17 mm for M10), 6 mm and 5 mm hex/Allen keys, spirit level, 2 ladders, tape measure. Max fastener size: M12, minimum: M10 (washer required). |
| Professional installation | Optional |
| Surface restrictions | Plasterboard/drywall (wall or ceiling): do not mount directly. No load-bearing capacity. If drywall is present, locate the structural stud or joist behind it and fix into that. |
| Warranty | |
|---|---|
| Warranty term | Component-based / 10-year cassette |
| Warranty coverage | Aluminium cassette - 10 years Motor - 5 years Arms/mechanism - 5 years Fabric (AuroWeave™) - 5 years Electronics - 2 years |
Stay up to 10°C cooler during the day and enjoy integrated LED lighting after sunset.
-

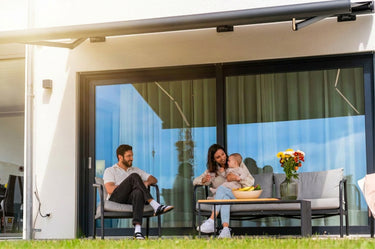

Take back your outdoor space from the sun. Most patios and decks become too hot to enjoy during summer. With a PERGOLUX Awning, you'll stay protected from the heat and harmful UV rays — whether it's your morning coffee, working from the patio, or enjoying lunch in the shade.
-

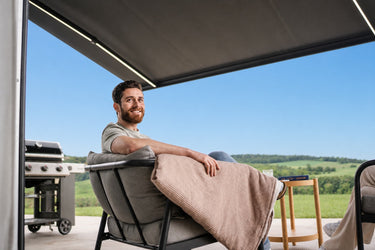

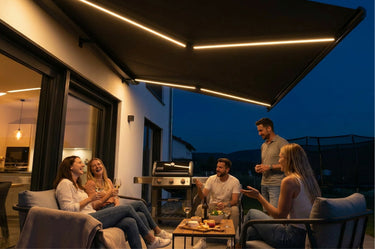

Your outdoor space doesn't have to shut down after sunset. Integrated LED lighting built into the awning arms creates the perfect setting for outdoor dining, entertaining or simply unwinding. No extension cords, no string lights and no messy cables—just effortless outdoor living well into the evening.
Got questions? Give us a call. We're happy to help with free, no-obligation advice.
📞 Call Now 02 9098 4751-
UPF 50+ Thermal Shade for Hot Afternoons. Made from 280 g/m² PU-coated polyester, the fabric blocks 98% of UV rays and helps reduce temperatures underneath by up to 10°C, keeping your patio comfortable during peak summer sun. Lab-tested with 1000 hours of Xenon-Arc exposure, the fabric is designed to resist fading, cracking and loss of UV protection over time.
-
Adjustable Shade for Low Sun Angles. Blocks low-lying sun with an adjustable 5°–25° tilt angle. Easily adjust the awning pitch with an Allen key to create shade throughout the day.
-
Reduce Indoor Heat & Glare. Installed over sliding doors or large windows, PERGOLUX Awnings help shade glass surfaces to keep interiors cooler and reduce glare. Enjoy more natural light with blinds open longer while helping reduce the load on your air conditioning during hot summer days.
-

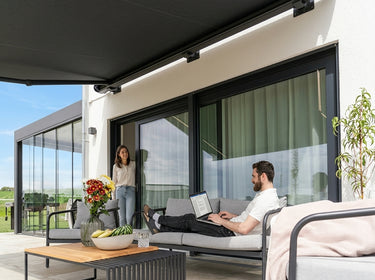

Work Outside Without Glare or Heat. The high-density 280 g/m² polyester fabric reduces direct sunlight and screen glare, making it easier to work outdoors. UPF 50+ protection helps keep your devices cooler in the shade, so you can work comfortably without squinting or moving indoors.
A sealed aluminum casing, hidden hardware, quiet coated cables and built-in dimmable LEDs create a cleaner look from day to night.
-
No Visible Screws, Bolts, or Fixings. The PERGOLUX cassette uses concealed hardware throughout, giving a cleaner facade and fewer weak points where rust can take hold over time.
-
Whisper-Quiet Operation. A quiet motor glides the awning smoothly in and out. The 304 stainless steel arm cables are wrapped in a protective plastic coating, acting as a permanent silent buffer that eliminates grinding or squeaking — no re-greasing, ever.
-
Dimmable LED Strips Built Into Arms. Chip-on-board LEDs produce smoother, continuous bands of natural white light compared to the dotted look of cheap LED strips. Dimmable with included remote and powered through the awning without a second outlet or professional wiring.
-
Tested for 20+ Years of Regular Use. Lab-tested for 3,000 open-close cycles, offering 20+ years of enjoyment at the average 150 uses per year, with integrated motor protection to prevent overheating and provide consistent smooth performance over time.
-

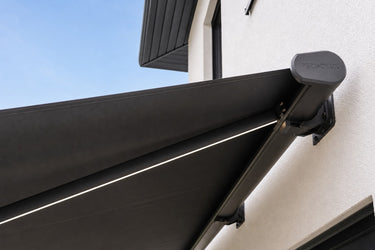

PU Coating Blocks Mold. Mold is the top reason awnings get replaced. Our PU-coated poly shades repel water while allowing fabric to breathe when rolled up, keeping moisture from trapping between layers and making debris easy to wipe off the surface.
-
Sealed Cassette Keeps Stored Fabric Dry. The 6063-T5 full-cassette housing seals rolled fabric, motor & arms from weather exposure when retracted, letting you store all winter or during rainy seasons then return to use without dealing with mold, covers or cleaning.
-

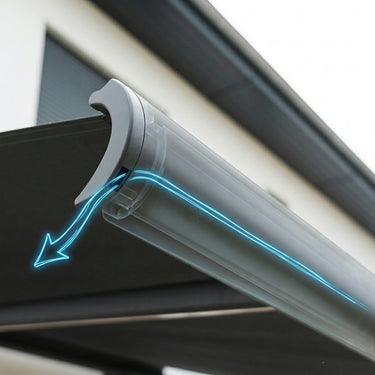

Integrated Gutter Prevents Water Pooling. A calibrated 5° pitch uses gravity to direct rainwater to an integrated front gutter, releasing it through drainage points on both sides of the front profile, eliminating standing water that causes pooling, sagging, and mold.
-
Three Rust-Proof Materials, Zero Weak Joints. Most awnings fail from rust in the hidden joints. We use 6063-T5 aluminum for the structure, hot-dip galvanized Q235 steel for brackets and hinges, and 304 stainless steel for internal cables. Designed to prevent corrosion from salt air, heavy rain, or coastal humidity.
-

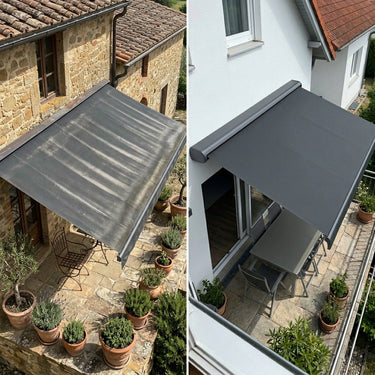

No Sagging or Brittle Fabrics. Our shade fabric is stress-tested for 400+ hours under concentrated UV radiation that simulates years of harsh outdoor exposure, able to hold shape and tension even in climates with intense sun exposure.
-
No screeching - even after years. Our 304 stainless steel cables are encased in a permanent protective sleeve that eliminates metal contact, while hot-dipped galvanized hinges resist rust, meaning no screeching or grinding sounds when awning opens or closes.
-
Fade Resistance, Even With Intense Sun. AuroWeave™ shade fabric has Level 4 Color Fastness (ISO 105) that won't fade like lesser fabrics. Full-cassette storage shields fabric from UV when retracted, extending color life even further.
Remote control, easy cleaning and simple DIY installation.
-
Enjoy effortless shade at the touch of a button. The high-torque RF motor smoothly extends and retracts your PERGOLUX Awning with no manual winding required. The remote control has an extended 20m range, allowing you to operate your awning from inside your home, out on the deck, or anywhere in your backyard.
-

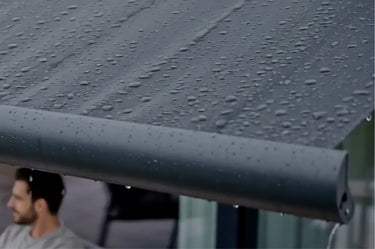

Enjoy Your Outdoor Space, Even in Light Rain. Don't let a passing shower spoil your plans. The premium 280 g/m² AuroWeave™ polyester fabric features a durable PU coating that repels light rain, so you can continue enjoying your outdoor entertaining area in drizzly conditions.
-
Low-Maintenance Fabric That's Easy to Clean. PERGOLUX AuroWeave™ fabric features a durable PU coating that repels dirt, dust and pollen. Simply rinse with a garden hose to keep your awning looking fresh — no harsh cleaning products required. Built to handle Australian outdoor conditions, it stays beautiful for years to come.
-

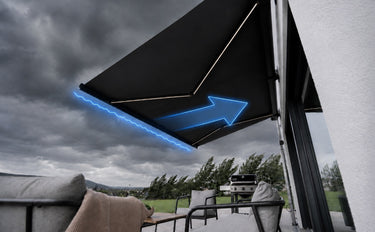

Optional Wind Sensor with Automatic Retract. Add extra peace of mind with the optional wind sensor. It detects strong wind conditions and automatically sends a retract command to protect your awning when the weather changes. No wiring or drilling required—simply clip it on and enjoy added protection. Sold separately.
-
Easy Two-Person DIY Installation. Designed for a simple DIY setup, PERGOLUX Awnings can be installed by 2 people in around 1 hour using standard tools. The plug-and-play design connects to a standard outdoor power point, with no hardwiring or licensed electrician required. Need help? Our support team is available via chat, phone and video call 7 days a week.
-
Emergency Manual Crank Included. Never lose control of your awning. If there’s a power outage, the included manual crank allows you to easily open or close your PERGOLUX Awning by hand — no power required, so you’re always covered.
20+ years of engineering experience, direct-to-consumer pricing, and zero compromises. That's the PERGOLUX standard — now in our awning too.
Exceptional value for money is part of our DNA. By designing smarter, manufacturing at scale, and selling directly to homeowners, we deliver premium outdoor products with exceptional quality and value.
Thoughtfully designed for easy DIY installation, so you can get set up with confidence.
Quick and straightforward installation. With basic tools and 2–3 people, your PERGOLUX Awning can be installed in around an hour.
Looking for professional installation? Our trusted installation partners operate across selected regions in Australia. Contact us to check availability or just select it as an add-on in the awning configurator.
After purchase, our installation partner will reach out to schedule a time with you.
Yes. PERGOLUX motorised awnings are designed for easy DIY installation and are suitable for most Australian homes.
With 2–3 adults to help lift the awning into position, most installations can be completed by following our step-by-step installation guide, video tutorials and the PERGOLUX app.
If you'd rather leave it to the professionals, we can also connect you with trusted installation partners in selected areas across Australia.
Most PERGOLUX awnings can be installed in around 1–2 hours, depending on the wall type and the size of the awning.
The installation process includes:
- Measuring and marking the mounting position
- Installing the wall brackets
- Lifting and securing the awning cassette
- Connecting the power supply
- Testing the motor and remote control
With the right preparation and a couple of helpers, installation is quick and straightforward.
You won't need any specialised trade equipment to install your PERGOLUX awning.
For most Australian homes, you'll need:
- 2 sturdy step ladders
- Power drill (hammer drill for concrete or brick walls)
- Masonry drill bits (14 mm or 16 mm, depending on your wall type)
- Socket wrench or ratchet set
- 6 mm Allen key
- Spirit level
- Tape measure
- Pencil or marker
- Caulking gun (for chemical anchor resin and exterior-grade silicone, where required)
- Wall scanner (recommended to locate electrical cables and water pipes before drilling)
Always use the correct wall fixings for your wall type and follow the installation instructions carefully.
PERGOLUX retractable awnings are designed to be installed on structurally sound walls such as:
- Concrete
- Solid brick
- Reinforced masonry
If your home has rendered walls, weatherboard, Hebel, cavity brick or other lightweight construction materials, we recommend consulting a qualified installer to ensure the correct mounting method is used.
Your PERGOLUX Awning includes the heavy-duty mounting brackets, but you'll need to purchase the correct wall anchors for your home.
Because Australian homes are built using a range of materials—including concrete, brick veneer, double brick, cavity brick, Hebel and timber frame construction—the required wall fixings vary depending on the mounting surface.
You can purchase the recommended fixings from your preferred hardware or building supplies store.
Awnings under 5 m wide: 2 mounting brackets and 8 wall anchors
Awnings 5 m wide and above: 3 mounting brackets and 12 wall anchors
The correct wall fixing depends on the construction of your home.
Concrete: M12 × 120 mm expansion bolt
Solid or double brick: M12 × 160 mm threaded rod with chemical anchor resin
Sand-lime brick: M12 × 160 mm threaded rod with chemical anchor resin
Hollow or cavity brick: M12 × 160 mm threaded rod with injection sleeve and chemical anchor resin
Timber frame: 12 × 120 mm heavy-duty structural timber screws
Externally insulated walls: M12 stand-off anchor with chemical anchor resin
Concrete ceiling or soffit: M12 × 110 mm expansion bolt or threaded rod with chemical anchor resin
Hebel® or other aerated concrete: We recommend consulting a structural engineer or qualified installer before installation.
Yes. If your home has external insulation, your installer will use specialised stand-off fixings designed for insulated walls. These anchors pass through the insulation and are secured into the solid wall behind it, so the awning is supported by the structure of your home—not the insulation itself. This prevents the insulation from being crushed or damaged when installed correctly.
Yes. Hollow brick walls require specialised fixings rather than standard masonry bolts. Depending on your wall construction, your installer will use the appropriate anchoring system to ensure a secure installation without damaging the brickwork.
Three simple steps can save you a lot of hassle. First, look for the obvious signs: electrical cables and plumbing pipes usually run straight up and down, or across from power points, light switches, taps and drains. Second, check your home's plans if you have them. Third, use a wall scanner (easy to buy or hire from most hardware stores) to check where you plan to drill. Spending five minutes checking now can save you from a costly mistake later.
For the best clearance and shade, we recommend installing your awning around 2.6–3.0m above ground level. This provides plenty of headroom while allowing the awning to extend at the correct angle. Your installer will position it to suit your home and ensure doors and windows can still open freely.
Yes. PERGOLUX awnings can be installed on either a wall or a ceiling, provided the mounting surface is structurally sound. Concrete, solid brick and structural timber are all suitable when installed with the correct fixings. Your installer will determine the best mounting option for your home.
Yes. The pitch can be adjusted both during installation and afterwards. This lets you fine-tune the amount of shade, improve water runoff during light rain, or adapt the angle as the sun changes throughout the year.
No. PERGOLUX awnings are plug-and-play and come with a long power cable that plugs straight into a standard outdoor power point. No hardwiring is required for a typical installation.
Yes. PERGOLUX awnings are engineered for outdoor use and are weather protected. We do recommend plugging the awning into a weatherproof outdoor power point, just as you would with any outdoor appliance.
No worries. Every PERGOLUX awning includes a manual crank, so you can still open or close it if there's a power outage.
Not if it's installed properly. The cable can be routed neatly along brickwork or hidden inside slim, paintable cable conduit, making it blend in with your home.

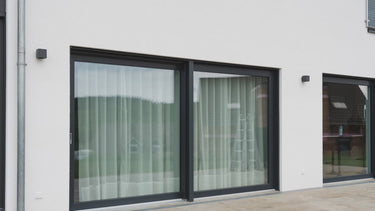

See a real example here:
No. The full-cassette design completely encloses the fabric and arms when retracted, protecting them from dirt, rain and the elements. Simply close it when you're finished, and it's ready whenever you need it again.
PERGOLUX awnings are tested to Wind Resistance Class 2, making them suitable for normal residential wind conditions.
If strong winds, storms or severe weather are forecast, we recommend retracting your awning to protect both the fabric and the frame.
For added peace of mind, you can also install an optional PERGOLUX wind sensor that automatically retracts the awning when wind speeds become too high.
Yes. The premium 280 g/m² AuroWeave™ polyester fabric features a durable PU coating that repels light rain, so you can continue enjoying your outdoor area during passing showers.
During heavy rain or storms, always retract the awning to prevent water from pooling on the fabric.
No. When retracted, the fabric and arms are fully enclosed inside the aluminium cassette, helping keep everything secure and quiet.
PERGOLUX AuroWeave™ fabric is specifically engineered to resist mould. The PU-treated surface is water-repellent yet breathable, which prevents moisture from being trapped between layers when the fabric is rolled up. The non-stick surface finish stops pollen and organic matter from embedding in the fibres — the main food source for mould — meaning a simple rinse with a garden hose keeps the fabric clean. The full-cassette enclosure adds a further layer of protection by shielding the rolled fabric from damp conditions all winter.
Built for Australia's harsh climate, PERGOLUX AuroWeave™ awning fabric is engineered to retain its colour and performance for years of outdoor use. Tested under 1,000 hours of Xenon-Arc UV exposure, it delivers Level 4 colour fastness, helping prevent fading even after prolonged exposure to the Australian sun. Unlike standard retractable awnings, the full-cassette design completely encloses the fabric when retracted, protecting it from UV rays, rain and dirt. The result is a motorised awning that stays looking newer for longer, with consistent colour and lasting durability.

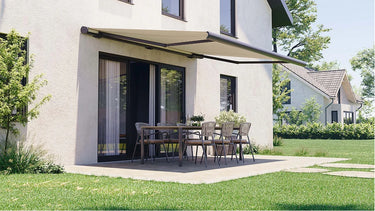

Think about the area you'd like to shade, not just the wall you're mounting it to. We generally recommend choosing an awning that extends slightly beyond your main outdoor seating area, giving you comfortable shade throughout the day as the sun moves.

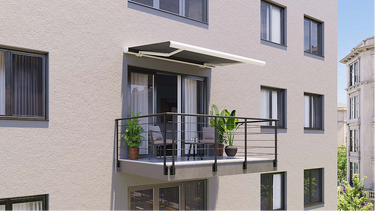

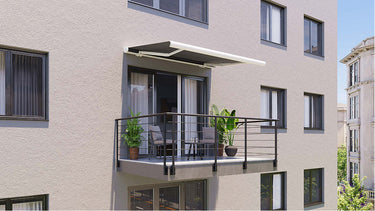

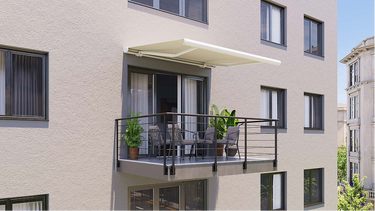

Choose a width that fits comfortably within your balcony, leaving a little clearance at each end. Your awning should also extend without projecting beyond the balcony edge.
PERGOLUX awnings are built to last and backed by our warranty:
10-year warranty on the structural frame and mounting brackets
5-year warranty on the motor and moving components and on the fabric
2-year warranty on controls, electronics and accessories
PERGOLUX awnings are designed to be repairable, not replaced.
The motor can be replaced without replacing the entire awning. In the meantime, you can still operate the awning manually using the supplied hand crank.
In most cases, no. Installing a retractable awning on a freestanding home generally doesn't require council approval.
However, requirements can vary depending on your local council and property type. If you live in a heritage-listed home, townhouse, apartment or strata property, we recommend checking with your local council or strata manager before installation.
You'll generally need your landlord's written permission before installing a permanent awning, as it involves fixing the brackets to the building. If you're unsure, check your lease agreement or speak with your property manager first.
Got questions? Give us a call. We're happy to help with free, no-obligation advice.
📞 Call Now 02 9098 4751
