Pergola 4 Pro
Pergola 4 Pro (formerly Sundream)
Effortlessly control your entire all-weather outdoor system at the touch of a button. The PERGOLUX Pergola 4 Pro is a motorised aluminium pergola featuring double-layered louvres and dimmable LED beam lighting. A second SnapFIT accessory rail in each beam allows you to easily add or reposition screens and accessories without drilling. Control your pergola via remote control, Bluetooth app, or your smart home system. The next evolution of our Sundream model.
Built to resist corrosion, rust, UV exposure, and warping. Engineered to withstand winds up to 118 km/h and snow loads up to 320 kg/m², depending on configuration.
All 4th generation PERGOLUX pergolas feature roof installation that’s up to four times faster, along with the upgraded RainLUX water drainage system.
Buy before 4 PM and receive it within the next 3-6 days
To ensure the fastest possible delivery, some items in your order may arrive earlier in separate packages

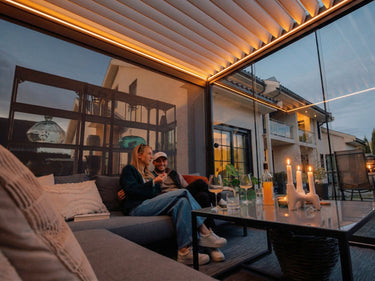

A motorised louvred pergola with integrated beam lighting
The PERGOLUX Pergola 4 Pro comes fully integrated with everything you need for a complete outdoor living experience straight out of the box.
This model is popular with:
- Homeowners seeking modern features without exceeding their project budget
- Projects where power is available and enhanced comfort is a priority
- Anyone wanting effortless, one-touch control of their pergola system
As an upgrade from our manual model, it includes:

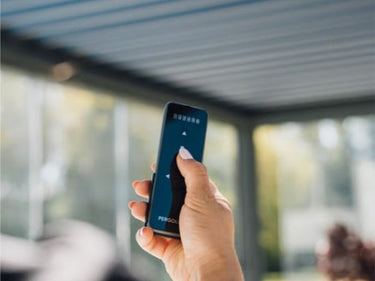

- A motorised roof system operated via remote control, app, or smart home integration
- A second SnapFIT channel in each horizontal beam, expanding your options for compatible PERGOLUX accessories
- Built-in dimmable LED light strips in the perimeter beams for effortless ambience straight out of the box
- Engineered to withstand extreme wind conditions and heavy snow loads, depending on configuration

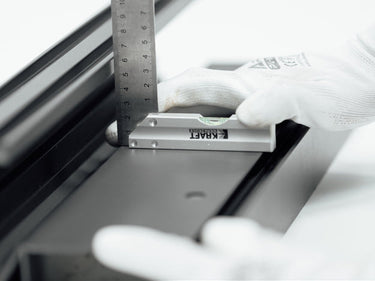

Corrosion, rust, UV and warp resistance
Every PERGOLUX pergola is built using 6063-T5 aluminium — a premium architectural-grade alloy that delivers a smoother finish and more consistent colour than standard industrial-grade materials. That’s how we design pergolas built for Australian conditions.
What’s New with the 4th Generation PERGOLUX Pergola
The 4th generation of our award-winning pergola range introduces engineering upgrades previously only available in higher-tier PERGOLUX models.
All 4th generation models now come standard with:
- Patent-pending roof assembly system with up to 4x faster installation
- SnapFIT no-drill accessory channels
- RainLUX drainage system, with enhanced drip guards on Pro and Pro Max models
- (Pro and Pro Max) smart home connectivity built into electronic components via Bluetooth and Matter
- Enhanced DIY-friendly assembly

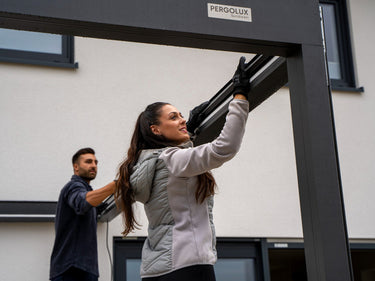

Easier DIY Assembly
Whether you install it yourself or hire a professional, the result is designed to feel premium and secure.
Our 4th generation pergolas include pre-assembled roof panels with a redesigned click-in installation system. Assembly is so straightforward, you’ll barely need the manual.
- A standard 3m x 3m 4th generation PERGOLUX louvred roof can be assembled in under 15 minutes
- Larger 6m roof spans with more than 40 louvre panels can be assembled in as little as 45 minutes
Combined with colour-coded hardware and pre-drilled components, the 4th generation system continues our focus on beginner-friendly installation.
More Ways to Configure Your Space
Proprietary SnapFIT accessory channels are integrated into every 4th generation PERGOLUX model.
- Hidden channels built directly into the aluminium frame allow compatible accessories to slide or snap into place
- Accessories can be added or removed without dismantling or drilling into the structure
- Minimising the need for drilling helps keep beams better sealed against water and wind
SnapFIT is a modular system designed to evolve with your outdoor space over time. Compatible accessories include PERGOLUX glass walls, slat walls, retractable screens, heaters and additional LED lighting kits. Your pergola is also backwards compatible with future SnapFIT-enabled accessories.
Smarter All-Weather Durability
Smart home connectivity is integrated into all electronic components across 4th generation PERGOLUX models via Bluetooth and Matter.
- Control electronic features directly through the PERGOLUX app without requiring a separate smart home system
- Connect with compatible platforms including Apple Home, Google Home and Amazon Alexa
- Upgraded antenna improves Bluetooth range and connection stability
- Automate louvre positioning, lighting or heaters based on time of day
- Pair with weather-based automations to respond to changing conditions automatically
Setup is simple and does not require a specialised installer.
A QR code engraved on the control box allows the system to be connected to your smart home at any time — even years after installation, and without needing the original documentation.

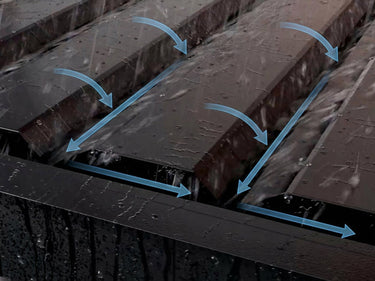

Optimised Rain Management
The RainLUX drainage system has been refined with an updated drip guard across all 4th generation PERGOLUX models.
- Improved water channelling with reduced noise during louvre operation
- Redesigned geometry helps minimise water splash within the gutter system to keep the area underneath drier during heavy rain
With RainLUX, your pergola is designed to keep the space underneath dry:
- Closed roof panels create a watertight seal
- Rainwater is directed into hidden gutters within the beams
- Water flows through concealed drainage inside the posts
- Discreet drainage outlets at the base direct water away from your outdoor area
We’ve helped more than 100,000 homeowners create successful outdoor spaces around the world. Every model is backed by the PERGOLUX warranty.
Basic Tools & Speedy Build
Choose between video guides, our guided mobile app, or downloadable PDF instructions for clear and precise help. Still need assistance or feeling stuck? Contact our support team for an instant response.
Download the app
Download our mobile app for the easiest setup. It provides step-by-step instructions, helps you track your progress, and always shows the latest updates for your pergola.
Prefer a printable version?
Download our PDF guide for step-by-step instructions you can follow at your own pace, anytime—even without an internet connection.
Download PDFs
SHIPPING INFORMATION
At PERGOLUX, we are proud to offer free shipping on most orders Australia-wide, helping you bring your outdoor vision to life without extra cost surprises.
Whether you’re in Sydney or regional Queensland, our goal is to deliver your pergola quickly, safely, and with care.
SHIPPING COVERAGE
We ship across Australia, including most metro and regional areas.
While we aim to offer free delivery to as many postcodes as possible, a freight surcharge may apply for certain remote or island locations.
If your address falls outside standard delivery zones, our team will contact you prior to dispatch to confirm options.
PROCESSING & HANDLING
Order Processing Time: 24 to 48 hours
Dispatch Days: Monday to Friday (excluding public holidays)
Once shipped, you’ll receive a tracking link to follow your delivery in real-time.
ESTIMATED DELIVERY TIMES
| Location | Estimated Transit Time |
|---|---|
| NSW Metro | 1–3 Business Days |
| NSW Regional | 3–6 Business Days |
| ACT | 2–4 Business Days |
| VIC Metro | 2–4 Business Days |
| VIC Regional | 4–6 Business Days |
| QLD Metro | 2–4 Business Days |
| QLD Regional | 4–6 Business Days |
| SA | 3–6 Business Days |
| TAS | 4–8 Business Days |
| WA | 8–12 Business Days |
| NT | 8–12 Business Days |
Please Note: Deliveries to remote or regional areas in WA, NT, SA, and Far North QLD may take longer than standard transit times due to our third-party delivery partners. Please allow additional time for December deliveries as this is our peak season with extended delivery timeframes.
IMPORTANT DELIVERY INFORMATION
-
All deliveries require someone to receive and sign for the goods unless otherwise arranged.
-
Please ensure someone is available at the delivery address to sign for the order and help with unloading.
-
Upon delivery, we recommend inspecting your items within 7 days to report any external damage. For missing parts or issues please feel free to reach out to our customer support team promptly to resolve any concerns.
-
Risk of loss or damage transfers to you upon delivery to the nominated address.
-
In the rare event of shipping delays within our control, our team will proactively keep you informed.
WE CURRENTLY SHIP WITHIN AUSTRALIA ONLY
If you are unsure about your location's eligibility or have a special request about your delivery, feel free to contact our team. We're here to help!
Pergola 4
| Dimensions | |
| Overall Product Weight | 147kg to 362kg |
| Pass-Through Height | 2350mm |
| Total Height (Louvers Open) | 2606mm |
| Minimum Height Clearance | 2606mm |
| Height Options | Fixed |
| Max Coverage Area | 22.93 sqm |
| Max Unsupported Span | 5m |
| Max Span Between Posts | 4.56m |
| Post Dimensions | 120 x 120mm |
| Beam Dimensions (Height x Width) | 175 x 108mm |
| Beam Dimension (Wall-mounted) | 185 x 108mm |
| Beam Thickness | 1.8mm |
| Base Plate Size | 160 x 160mm |
| Louver Width | 166.5mm |
| Material | |
| Frame | 6063-T5 aluminium |
| Coating | Double layer powder coating |
| Finish Options | Anthracite, White, Anthracite with White Louver |
| Corrosion Resistant | Yes |
| Mold Resistant | Yes |
| Moisture Resistant | Yes |
| UV Resistant | Yes |
| Fade Resistant | Yes |
| Fire Resistant | Yes |
| Durability | |
| Deflection Standard | up to 170 kg sqm |
| Rain Protection | RainLUX drainage system |
| Maintenance | Wash with water & mild soap |
| Engineering Certifications | TÜV View Certificate |
| Warranty | 10-Year PERGOLUX Warranty |
| Roof System | |
| Louver Construction | Single Wall |
| Louver Rotation Range | 0-120 adjustable |
| Speed (Full Open/Close) | N/A |
| Roof Drive System | Manual crank |
| Motor Noise Level | — |
| Electricity Required | No |
| Operating Temperature | N/A |
| Rain Protection | Water-tight when closed |
| Drainage | Integrated slope to RainLUX gutters |
| Configuration | |
| Attachment Type | Freestanding or Wall-Mounted |
| Size Options | 3x3, 3x4, 3x5, 3x6, 4x4, 4x5, 4x6 |
| Custom Sizing | Standard Sizes Only |
| SnapFIT Accessory Channels | 1 per rain gutter |
| Wall Options | screens and glass walls (fixed or sliding) |
| Heating | PERGOLUX heater compatible |
| Lighting | |
| Lighting Option | Optional LED Accessory |
| Dimmable | Yes |
| Max LED Brightness | 600 lumens |
| Colour Temperature | 3000k |
| Light Colour Options | Warm White, RGB |
| Controls | |
| Remote Control | Open/close louvers and control accessories |
| Remote Range | up to 40m |
| App Control | Open/close louvers and control accessories |
| Wireless Protocol | N/A |
| Smart Home Control | Open/close louvers and control accessories |
| Smart Home Compatibility | Open/close louvers and control accessories |
| Installation | |
| Difficulty | DIY-friendly |
| Assembly Time | 3-7 hours with 2 people |
| Installation Surfaces | Concrete, wood deck, patio pavers |
| Anchoring Hardware | Not Included |
| Electrical Required | Yes, electrical connection is required for lights and heaters. For pergolas with manual crank operation, electrical connection is optional. |
| Professional Assembly | Optional |
| Additional Tools Required | Ladder, tape measure, level, power drill, allen key, silicone, mounting bolts |
| Mounting/Installation Type | Wall-mount or freestanding |
| Delivery | |
| Largest Package | 5800mm |
| Total Packages | Info coming for S4 |
| Heaviest Component Weight | Info coming for S4 |
Design in Norway. Engineered for Australia.
Our pergolas have been independently assessed by a qualified Australian Structural Engineer and certified to meet key Australian Standards, including AS/NZS 1170 and the National Construction Code (NCC).
✅ NCC 2022✅ NCC AS 4100✅ AS1170.0-2002✅ AS1170.2-2021✅ AS/NZS 1664
✅ National Construction Code (NCC) compliance

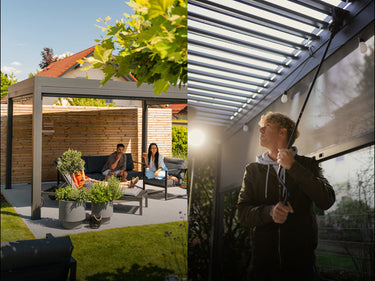

Thanks to the crank mechanism, you can manually adjust the louvres up to 120° to suit your needs. This classic flexibility lets you follow the sun throughout the day, improve airflow on your patio, or bring more natural light into your indoor spaces.
Designed in Norway with a specialist engineering approach, the Pergola 4 is built to perform in demanding Australian conditions. Its structure is up to three times stronger than standard consumer products. Crafted from high-quality extruded aluminium, it delivers exceptional durability and long-lasting stability.
Once the louvres are closed, they form an impenetrable barrier — not a single drop penetrates the roof. The RainLUX™ system channels water invisibly through the posts, while the splash guards reliably keep your furniture dry. This ensures your patio remains a pristine and inviting retreat, even in heavy rain.
You don’t need to hire professional installers or use complex tools. We’ve reimagined assembly to make it simple and stress-free. Thanks to our exclusive RapidLouver™ and SnapFIT™ innovations, the parts fit together with precision. With two people, your pergola can be assembled in just a few hours and enjoyed the same day.
The Series 4 is designed to adapt to your needs and can be fully customised to suit your style. Easily integrate screens, glass walls, or LED lighting to create a unique space. This modular flexibility allows you to evolve your retreat at any time — for an expansion that fits your lifestyle perfectly.
With Smart Matter®, you can easily customise your outdoor comfort. Adjust the roof, lighting and heating with the touch of a button or via voice control for a seamless connected experience. Compatible with Google Home, Amazon Alexa, Bluetooth and more.
Introducing the 4th Generation. Revolutionary assembly speed with RapidLouver™ click-in installation, unparalleled durability, and maximum customisation with glass walls, screens, heaters and other accessories.
-
Reinforced Construction. Built stronger for long-lasting performance. Reinforced louvre arms and upgraded slats allow for higher load capacity with less strain on the motor, ensuring smooth and reliable operation over time (Pergola 4 Pro and Pergola 4 Pro Max).
-
Optimised water drainage. Experience the new RainLUX™ system: precise water drainage combined with quieter louvre operation. The freestanding Pergola 4 Pro Max and Pergola 4 models no longer require silicone during assembly, making setup easier than ever.
-
Simplified installation. RapidLouver™: our patent-pending technology saves you time. This exclusive system reduces roof installation time by up to 75%. The precisely fitting, pre-assembled panels make installation a quick and straightforward process.
-
Complete modularity. Limitless customisation without drilling. Thanks to the SnapFIT™ rails integrated into all 4th generation models, walls, glazing, or radiant heaters can be added in no time. This system preserves the integrity of your pergola and its original surface.
-
Norwegian Design. From the choice of materials to the minimalist, functional design, it has been crafted from the ground up for perfection – a testament to true Scandinavian craftsmanship.
-
Excellent Customer Service. Australian team, quality assured, 10-year warranty, and always-there support. Over 50,000 satisfied customers means we're always by your side.
-
Introducing Series 4
-
