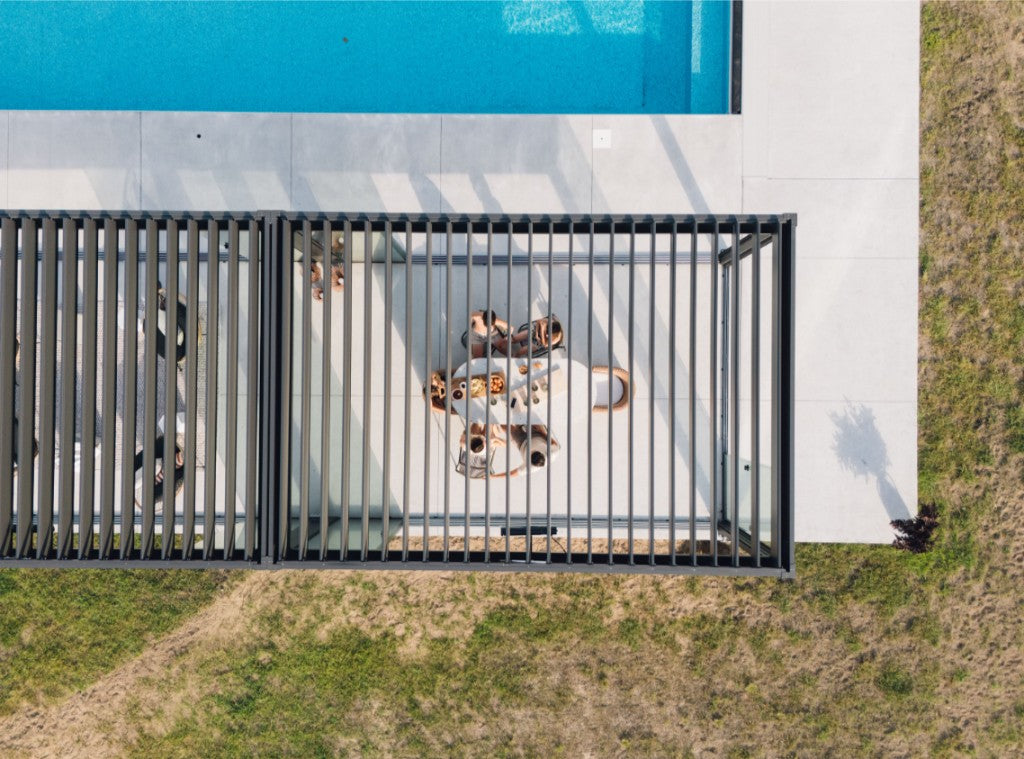

What Do You Need to Know Before Building a Pergola Foundation?

In this article:

• Why a pergola base matters
• Navigating council approvals and permits
• Installing on patios or decks
• Pre-planning for a new foundation
• Picking a foundation type
• Frequently asked questions

Why Does Your Pergola Need a Proper Foundation?

The foundation for your pergola does several things:

• Prevents sagging, leaning, and wobbling, protecting the integrity of every joint and screw
• Keeps features like louvered roof panels and retractable screens working smoothly without binding or jamming
• Drains water more effectively through integrated gutters, keeping rain from pooling or damaging the structure
• Looks better, adding significant value and polish to your home

Skipping or rushing the foundation can lead to structural issues over time as the ground settles beneath the weight of the new structure.

Do You Need Council Approval to Build a Pergola Foundation?

You might need approval, a permit, or a development application (DA) for your pergola if:

• It is over a certain size or height
• It is attached directly to your house
• It has electrical or plumbing elements
• It's located close to a boundary, easement, or in a bushfire-prone or flood-affected area

Requirements vary by state and council area (different rules apply in NSW, VIC, QLD, WA, SA, TAS, NT, and ACT, and even between local councils). Many smaller, freestanding pergolas qualify as exempt or complying development, but it's worth checking before you start.

To understand whether you need approval:

1. Check your local council's website for "exempt development" or "complying development" rules for pergolas and outdoor structures.
2. Call your local council. Tell them the size and location you're planning, and ask whether a permit, DA, or building approval is required, and whether there are any foundation requirements.
3. If you're in a strata or community title scheme, check with your body corporate or owners' corporation and get any required sign-off before you build.

Can You Install a Pergola on an Existing Deck or Patio?

Already have a concrete patio or a timber deck? You may be able to anchor your pergola directly to it, but only if the surface is strong enough. Here's what to assess:

Is Your Concrete Patio Strong Enough to Support a Pergola?

A patio must be a solid, crack-free concrete slab at least 100 mm thick. Thin pavers set on sand are not a structural base and cannot be used.

Use a long level to check for significant dips or slopes that could affect the pergola's stability. Tap the surface with a hammer in several spots. A solid, high-pitched "ping" suggests a solid slab. A hollow, low-pitched "thud" could indicate separate pavers or a cracked base.

Can a Timber Deck Handle the Weight of a Pergola?

A "floating" deck that sits on blocks is not suitable for supporting the weight and wind load of a large pergola. The deck itself must be supported by concrete footings sized appropriately for your soil type and local conditions.

For a timber deck, check that the deck's footings are deep enough and well-founded to support the added weight of the pergola. If so, evaluate whether you can anchor the pergola posts directly to the deck's underlying support joists and bearers. This is more stable than attaching only to deck boards. You may need to add extra blocking between joists for support.

What Should You Do Before Digging Your Pergola Foundation?

Evaluating the soil, utility needs, and layout requirements for your pergola space will inform your choice of foundation.

How Do You Mark and Measure a Pergola Layout?

Before any digging or concrete work, transfer the foundation plan to your yard exactly.

• Download the foundation plan for your pergola model. This is usually available on the product page, and will provide exact centre-to-centre post measurements. Having this in advance allows you to prepare the foundation before your pergola arrives, minimising storage time.
• Mark the footprint using wood stakes connected by string line. Each stake should go where the post centre will be.
• Check that it's square. Measure diagonally from one corner to the other, then repeat the other way. The distances should be exactly the same.

A square layout ensures everything fits perfectly later. That helps posts align, louvers close smoothly, and drainage works as designed.

What Type of Soil Do You Have, and Why Does It Matter?

The type of subsoil under your pergola can determine which foundation is best. You can figure this out with a simple shovel test by digging a 300 mm x 300 mm hole where the pergola post will go.

Soil Type	What It Means	Foundation Recommendation
Hard, compacted clay, or rocky	Ground is strong enough to support concentrated weight.	Point foundation or concrete footings
Loose, sandy, or soft	Will easily shift or settle if a heavy structure is added. Need to distribute weight over a larger area.	Strip foundation, concrete slab
Reactive clay (common in many AU regions)	Soil expands and contracts significantly with moisture changes.	Deeper footings, or a strip foundation/slab designed for reactive soils
Large roots or rocks	Obstacles make digging precise holes more challenging — use wider footings or position them to avoid obstacles where possible.	Concrete footings or strip foundation

If you're unsure, a geotechnical or soil report from a local engineer is a worthwhile investment, especially in areas known for reactive clay.

Should You Plan for Electrical or Plumbing Before Pouring Concrete?

Will you want lighting, an outdoor fan, power points for charging devices, or even a future outdoor kitchen? Now is the only easy time to plan for it.

• Design your layout. Mark where power points, lights, and water lines will go. Confirm these align with furniture, appliances, or future accessories.
• Run conduits early. Lay electrical conduit (usually grey or orange PVC) before pouring any concrete. For slabs, conduits will usually run through the gravel base so they emerge through the concrete. For pier or trench foundations, conduits usually run through the trenches.
• PERGOLUX power requirements. If you plan to use PERGOLUX's built-in lighting, heater, or motorised louvres, all you need is a standard 240V power outlet nearby — no special wiring or complex installation required.
• Put safety first. Always use a licensed electrician for any electrical work, as required under Australian wiring regulations (AS/NZS 3000). It's a small investment that can prevent major rework later.

c

Which Type of Pergola Foundation Is Right for Your Project?

Foundation Type	Best for	Key Benefit
Concrete Footings	Most pergolas on stable soil — the most common choice.	Fast, cost-efficient, and highly reliable.
Strip Foundation	Larger pergolas, glass wall installations, or reactive clay soils.	Extremely strong and stable on challenging ground.
Concrete Slab	Pergolas with full glass walls, or unstable/swampy soil.	Maximum stability and doubles as a finished floor.

What Are Concrete Footings, and Are They Right for Your Pergola?

Concrete footings are individual poured concrete bases — one under each pergola post. This is the most common foundation type for PERGOLUX pergolas, suitable for the vast majority of installations including large structures. Each footing is typically 450 x 450 x 600 mm and is poured into a dug hole or cardboard formwork tube, with the post anchor set into the wet concrete.

When to choose concrete footings:

• You're installing any size PERGOLUX pergola on reasonably stable ground
• You want a straightforward DIY-friendly option that uses less concrete than a full slab
• Your soil is firm, compacted, or clay-based without significant reactive movement

What to know before you build:

• Standard footing size is 450 x 450 x 600 mm — one per post
• Cardboard formwork tubes or wide PVC pipes can be used as moulds
• Footings must reach stable, undisturbed ground — depth may vary by soil type
• Ready-mix concrete bags work well for most installations
• Measurements are critical — each footing must align precisely with the pergola's post layout

When Should You Use a Strip Foundation for a Pergola?

A strip foundation uses 300–450 mm wide strips of concrete poured using a rectangular frame. Your pergola posts are anchored to these strips. When built correctly, this is one of the most stable foundation types, and is particularly well suited to reactive soils or heavy structures.

When to choose a strip foundation:

• Your area has reactive clay soils that move with moisture changes
• Your installation spot has uneven or loose soil
• You want to add sliding glass walls (strips are ideal for anchoring the tracks)

What to know before you build:

• Trenches need to reach stable, undisturbed ground — often at least 450–600 mm, depending on local soil conditions
• Boards can be used to keep trench walls stable before pouring
• Your base layer needs to be properly compacted so concrete pours smooth
• When subsoil is weak, you can reinforce with a 100 mm concrete slab or compacted gravel with a polyethylene moisture barrier

Is a Full Concrete Slab Worth It for Your Pergola?

A full concrete slab is the most stable and permanent base for a pergola, and is the recommended foundation when installing full glass walls around your structure. It distributes weight evenly across the entire footprint and provides a clean, level surface for glass wall tracks to anchor into. It is more labour-intensive and costly, but provides unmatched stability for fully enclosed outdoor rooms.

When to choose a concrete slab foundation:

• You are installing glass walls and want a seamless, level base for the tracks
• Your location has loose, unstable, reactive, or swampy soil that cannot support footings
• You prefer a surface that doubles as a finished patio floor

What to know before you build:

• Because so much concrete is used, professional mixing or delivery (e.g. a concrete truck) is recommended
• A 400–500 mm pit will typically be dug to allow enough thickness to support the full weight of the structure and resist ground movement
• Gravel is used as a base layer to improve drainage and prevent the slab from shifting or cracking over time
• A polyethylene (PE) sheet between gravel and concrete blocks ground moisture, protecting the slab and any steel reinforcement from corrosion
• Concrete is poured in two layers, with steel reinforcement mesh between them for strength

Find a Pergola Kit for Your Space

Now that you know about laying a foundation, check out popular pergola kit models to find specific details on foundation requirements based on size, style, and design.

---

Frequently Asked Questions

How much does a concrete footing cost?

Costs vary by location and materials, but you can expect to pay between AU$200 and AU$550 per footing. Material costs for concrete, formwork, and hardware usually make up about AU$70 to AU$140 per footing, with the remainder going to labour if installed professionally.

What size should a concrete footing be?

The standard footing size for a PERGOLUX pergola is 450 x 450 x 600 mm. This suits the majority of installations on firm, well-drained soil and provides excellent load-bearing capacity for all pergola sizes.

How far apart should footings be?

You'll need one footing for each pergola post. The spacing is defined by your model's foundation plan. For example, a 3 x 4 m pergola typically requires four footings, while a 4 x 6 m model may need six. Always refer to the foundation guide specific to your pergola before marking out measurements.

How are pergola posts anchored?

Pergola posts must be securely fastened to the foundation for stability and safety. We recommend using M12 (12 mm diameter) concrete wedge anchors or chemical anchors at least 125 mm long. These are drilled into the cured concrete to form a strong, reliable connection between the post flange and the foundation.

Can I build a pergola on an existing patio or deck?

Yes, a pergola can be built on an existing surface that is stable and properly supported. For patios, posts anchor through the paving into concrete footings below. For decks, posts should attach directly to the framing to handle load safely.

Can I install a pergola foundation myself?

DIY installation is straightforward for concrete footings and suits most PERGOLUX installations. Strip foundations and full concrete slabs involve more excavation, formwork, and levelling, and are best handled by professionals — particularly on reactive clay soils or for glass wall installations.
